Application: Features, glazed areas, low walls and long runs

Solray Gilled Tube provides an efficient, attractive and space-efficient heat emitter.

Available in a wide variety of pipe diameters, lengths, and RAL colours, Solray Gilled Tubes can be joined together into long runs to cater for almost all situations.

Solray Gilled Tube is manufactured in our Swansea factory by special purpose machines which wind the strip onto BS 1387 medium weight nominal bore tubes in a continuous spiral.

Solray Gilled Tube

Solray Gilled Tube

The fin has a semi-flat profile with a regular crimped contact area resulting in a perfect mechanical bond all along the fin. Additionally, the fins are welded to the tube at each end which means the heat transfer properties will not deteriorate or loosen over time even in the most severe conditions.

Solray Gilled Tube can be supplied in nominal lengths of 0.5m, 1.0m, 1.5m, 2.0m, 2.5m and 3.0m. Bespoke lengths and heavy weight BS 1387 tube are available on request.

Solray Gilled Tube Connections

Gilled Tube Typical Connections

Floor or wall mounting brackets are available and can be powder coated to match the colours chosen for the tubes

Solray Gilled Tube Connections

Solray Gilled Tube Brackets















Solray Gilled Tube Technical Specifications

    • Sizes 15mm to 100 Nominal Bore
    • Medium or Heavy Weight Tube
    • Manufactured from Steel Tube to BS 1387
    • All steel continuous gilling

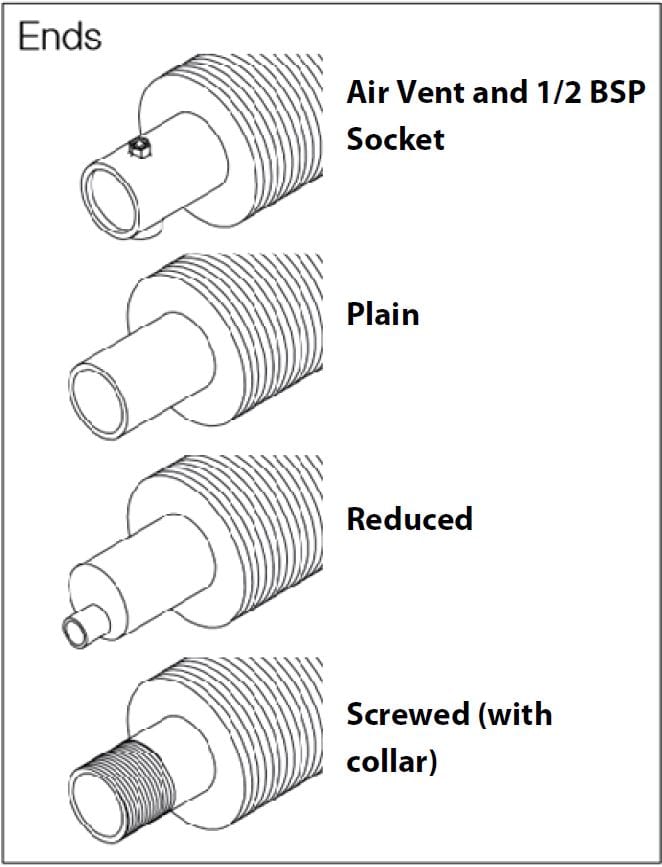

    • Plain, Screwed, or reduced Tube ends

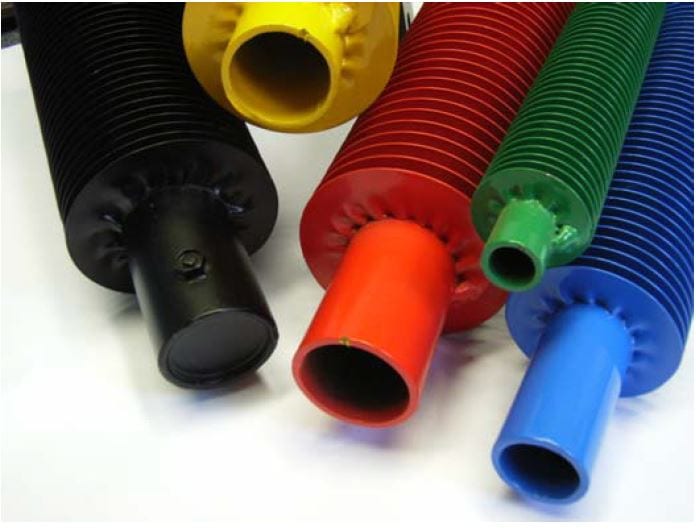

    • Powder coated to any RAL colour.
    • Perfect mechanical bonding of gills onto pipe
    • Any length up to 3m

Performance

Output Table

Our Gilled Tube Outputs


Interested? Please contact your local area manager or alternatively our UK based design team
